LiteFoot™ ATV Track conversion with the revolutionary SCS® Suspension* provides adjustable suspension for different weights of vehicles, allowing for easier steering.

LiteFoot's patented track conversion features a rubber torsion anti-torque system, designed to prevent track units from over rotating and the exclusive Shape Changing Suspension (SCS). This adjustable suspension allows for a larger or smaller footprint, changing the approach angle of the leading edge of the tracks for better "lift" in softer conditions. Suspension automatically adjusts approach and departure angle when encountering obstacles, without effectively changing track tension.

How the SCS System works.

As you can see in the animation above, the internal suspension of the track system, the SCS System allows leading wheels to move up and back while the center wheels move down and forward adjusting to the terrain without the loss of track tension. This action gives the driver the ability to negotiate over most obstacles and helps maintain the maximum amount of track to surface contact.

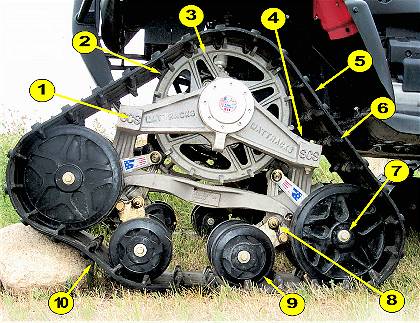

LITEFOOT FEATURES:

  1. LIGHT WEIGHT CONSTRUCTION - frame, drive sprocket and suspension parts are made of high-tensile strength aluminum, keeping the track unit durable and light weight.
  2. INTERNAL LUG DRIVE SYSTEM - designed for high efficiency, the positive internal drive lug is a direct drive system and does not require excess track tensioning.
  3. ALUMINUM DRIVE SPROCKET - engineered to provide a natural gear reduction, producing the extra power and torque required to travel over snow, mud, marsh and swamp, without significant reduction of speed.
  4. RUBBER TORSION, ANTI-TORQUE SYSTEM - works to dampen torque surge during acceleration and deceleration and prevents over-rotation of the track unit. Provides controlled movement of the LiteFoot tracks and keeps the track in contact with the ground gaining more stability and control over the terrain.
  5. ALL-SEASON TRACKS, 2 WIDTHS AND 3 TREAD PATTERNS AVAILABLE - molded rubber composite design with lateral reinforcement that's required to traverse over ruts and provides additional stability. The track is designed without perforated openings, preventing debris from entering through the track. The all-season tread design performs equally well in mud, sand, snow or hard surfaces.  Two widths 11” and 13” with 3 lug patterns; 5/8”, 1”, and 1 3/4” paddle lugs
  6. SELF-CLEANING - specially designed internal drive lugs continually work sand, snow, or mud out of the track, keeping track and SCS Suspension clear of debris.
  7. TRIPLE-SEALED BEARINGS - keeps out contaminants, extending bearing life.
  8. LUBRICATED SUSPENSION POINTS - the SCS suspension is engineered for easy maintenance, smooth operation and reliability.
  9. COMPOSITE WHEELS - constructed of UHMW (Ultra High Molecular Weight) material and rubber, for high strength, light weight and quiet operation.
  10. SCS (Shape Changing Suspension) - allows full travel without effectively changing track tension, while adjusting to variations in the terrain.  Two suspension weight classes 2500 pounds GVW and 3500 pounds GVW

Feature

Specification

Assembly Weight

Approx. 100 lbs. per track

Track Width - Standard
M3 Models

11 inches
13 inches

Suspension

SCS® System*

Ground Pressure

Depending on your machine less than 1/2 pound per square inch with some models. (Approx. 3/4 psi)

Maximum Operating Speed

LiteFoot™ is engineered to operate at speeds within ATV manufactures factory specifications.  Top speed is reduced by approx. 25 to 30%.
60 MPH top speed = 40 MPH

Weight Capacity

2500 lbs. Gross Vehicle Weight

Warrenty

1 year limited

Available today!
Track system is fully assembled and includes mounting brackets and linkages.

LiteFoot ATV Track Features
  • VERSATILTIY - Use your ATV year round! LiteFoot Track Conversion fits most 4x4 ATVs and can move with you to your next ATV, just using a different adapter kit.
  • ADDED STABILITY - Increase ground clearance! LiteFoot ATV Track Conversion System will generally raise your ATV 4 to 6 inches. At the same time, it widens the stance, lengthens the footprint contact from front to rear, and since most of the weight of the tracks system is below the center of the axle, LiteFoot, in most cases lowers the center of gravity. This provides incredible stability compared to tires!
  • ENVIRONMENTALLY FRIENDLY - LiteFoot tracks have less than three-quarter pound per square inch surface pressure, which minimizes ground compression, providing flotation over soft terrain with minimal impact on the environment.
  • EASY INSTALLATION - LiteFoot tracks come fully-assembled and are as easy to install as changing tires!

Mattracks supports responsible use and operation of All-Terrain Vehicles. We recommend you follow your ATV Manufacturers operational instructions. Use proper safety equipment including a helmet and respect private property and the environment while operating your ATV.
