LiteFoot Trail -R- Mate Models

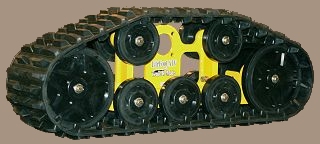

XL Model LiteFoot ATV Track - Photo

Work great with utility trailers when pulled behind tracked ATVs

  • For pull behind trailers and implements
  • 11” wide track
  • Tread lug choices
  • 1200 [545 kg] G.V.W.R.


SPECIFICATIONS Trail-R-Mates (includes XT Model)

Assembly Weight

Approx. 206 lbs @ 103 ea.

Type of Vehicle**

Utility Trailers

Recommended Max Gross Wt

1,200 lbs (545 kg) per pair single axle

Internal Suspension

Rigid, Oscillating

Track Assembly Length

42 in. (1,067 mm)

Track Tread Width

11 in. (279 mm)

Track Assembly Height

16 in. (406 mm)

Hub Surface Inset

4 1/8 in. (105 mm)

Axle Height

11 1/4 in. (286 mm) (from center of mounting axle to ground)

Hub Bolt Patterns

Fits most common 4 bolt patterns

Tread Style

1 in. (25 mm) lugs (All-Terrain Self-Cleaning)

Track Material

Rubber with Internal Composite and Cord

Recommended Operating Temperature

(Ambient) -40F to +130F (-40C to +55C)

Increase Ground Clearance*

4 in. (102 mm)

Ground Contact Length (approx.):

(Hard Surface) - 36 in. min. (915 mm max.)
(Soft Surface) - 42 in. max. (1,067 mm)

Ground Contact Surface Area (approx.)

1,560 sq. in. min. (10,062 sq. cm min.)
2,184 sq. in. max. (14,087 sq. cm max.)

Ground Pressure*

Less than 1/2 psi (3.4 kPa) on some ATVs

Sprocket Diameter

13 7/8 in. (352 mm)

Gear-Reduction

1/3 Increase in Gear Reduction on Vehicle with Typical OEM ATV Tire

Wheels (Shielded & Sealed Bearing)

8 wheels per corner, 2 rows

Wheel Material

UHMW & Rubber

Color

Natural Aluminum - Standard
Camouflage Colors - “Optional”

NOTE: Mattracks offers a running board fender protector, which acts as a fender and foot guard saver, to protect the track lugs, foot guard and inside fender from occasional track contact. The skid plate style running board will be required on most installations to protect the track and ATV fenders from damage.

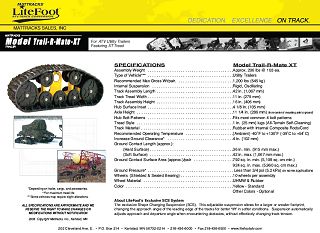

Click on image below to download a printable PDF copy of the product Specification Sheet.
Download Trail r mate XT

* Depending on vehicle, cargo, and accessories.

** For maximum tread life

*** Some vehicles may require slight alterations.

ALL SPECIFICATIONS ARE APPROXIMATE AND WE RESERVE THE RIGHT TO MAKE CHANGES OR MODIFICATIONS WITHOUT NOTIFICATION
