LiteFoot Model XT UR

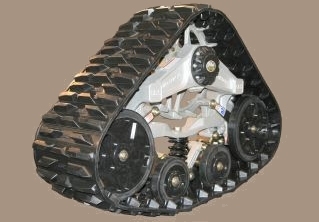

XL Model LiteFoot ATV Track - Photo

LiteFoot UR “XT”
Versatile aggressive tread provides great traction in most any terrain.

  • Heavy duty internal suspension
  • 11” wide track
  • 1” lugs
  • 3500 G.V.W.R. [1587 kg]


SPECIFICATIONS Model XT UR

Exclusive Anti-Torque System

Rubber Torsion - Anti Torque

Assembly Weight

Approx. 392 lbs @ 98 ea. (178 kg @ 44 ea.)

Type of Vehicle**

4 Wheel Drive Utility Rated Vehicles

Recommended Max Gross Wt

3,500 lbs. (1,587 kg)

Internal Suspension

Adjustable four link, triple spring Shape Changing Suspension (SCS)
(for extra-smooth ride)

Track Tread Width

11 in. (279 mm)

Tread Style - XT

1 in. (25 mm) lugs (All-Terrain Self-Cleaning, Extra Traction)

Track Material

Rubber with Internal Composite and Cord

Recommended Operating Temperature

(Ambient) -40F to +130F (-40C to +55C)

Increase Ground Clearance*

5.5 in. (140 mm)

Ground Contact Length (approx.):

(Hard Surface) - 27 in. (689 mm)
(Soft Surface) - 39 in. max. (991 mm)

Ground Contact Surface Area (approx.)

1,188 sq. in. min. (7,663 sq. cm min.)
1,716 sq. in. max. (11,068 sq. cm max.)

Ground Pressure*

Less than 3/4 psi (5.2 kPa) on some ATVs

Sprocket Diameter

13 7/8 in. (352 mm)

Gear-Reduction

1/3 Increase in Gear Reduction on Vehicle with Typical OEM ATV Tire

Wheels (Shielded & Sealed Bearing)

8 wheels per corner, 2 rows

Wheel Material

UHMW & Rubber

Color

Natural Aluminum - Standard
Camouflage Colors - “Optional”

NOTE: Mattracks offers a running board fender protector, which acts as a fender and foot guard saver, to protect the track lugs, foot guard and inside fender from occasional track contact. The skid plate style running board will be required on most installations to protect the track and ATV fenders from damage.

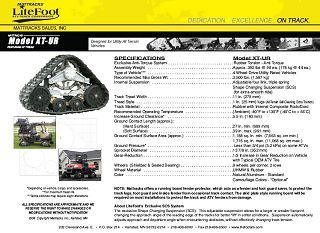

Click on image below to download a printable PDF copy of the product Specification Sheet.
Download Spec XTUR

About LiteFoot’s Exclusive SCS System
The exclusive Shape Changing Suspension (SCS). This adjustable suspension allows for a larger or smaller footprint, changing the approach angle of the leading edge of the tracks for better “lift” in softer conditions. Suspension automatically adjusts approach and departure angle when encountering obstacles, without effectively changing track tension.

* Depending on vehicle, cargo, and accessories.

** For maximum tread life

*** Some vehicles may require slight alterations.

ALL SPECIFICATIONS ARE APPROXIMATE AND WE RESERVE THE RIGHT TO MAKE CHANGES OR MODIFICATIONS WITHOUT NOTIFICATION
